With more than two decades of experience in coastal and offshore surveying and construction, and a clear vision of the real needs of professionals who work routinely with ROVs and subsea systems, we have conceived a wide range of underwater vehicles spanning from the “Observer Class” ROV SIRIO to the “Light Work Class” ROV PEGASO, through the family of the so-called “Multipurpose” models ROV PERSEO.

All models are characterised by a unique set of fundamental features in the world’s scenario:

  • Reduced overall dimensions and easy handling due to a carefully designed control software and high power, compact size thrusters to allow a straightforward usage even in adverse environments;
  • Wide-band concept applied to all connections by means of optical fiber cables, which guarantees fast data transmission and simultaneous communication of multiple sets of information between the ROV and the surface;
  • Easy vehicle management due to a simple layout of components and subsystems, and reduced maintenance downtime due to the supply of a complete kit of spare parts and to the use of top quality components, readily available worldwide, allowing to reduce general costs of work while increasing the value of the initial investment to the highest levels;
  • High degree of customisation with the aim of meeting customer’s requests due to a widely modular vehicle design;

Our staff guarantees full support for the customer, from the first contact to after-sales, offering its experience an know-how in any moment: our h 24/7 service allows a constant support to our customers, wherever they are in the world.

Rov Sirio

ROV “Observer Class” for visual inspections, Key features:Depth rating: 300 m, Dimensions: 590x560x450 mm, Weight: 40 kg, Chassis: Polyethylene H.D. and Stainless steel load frame and lift points, Cameras: n° 1 Color, Power requirements: 220-240 VAC, 380-410 VAC single phase 50/60 Hz 3 kW, Payload: 8 kg (up to 10 kg with optional buoyancy

SEE MORE

Rov Lyra

ROV LYRA “OBSERVER CLASS” FOR VISUAL INSPECTIONS, Key features:Depth rating: 300 m, Dimensions: 750x600x520 mm, Weight: 80 kg, Chassis: Polyethylene high density and Stainless lift points, Cameras: one Color Camera, Lights: two standard LEDs dimmable lights, Power requirements: 220-240 VAC single phase 50/60 Hz 3.3 kW, Payload: 18 kg (up to 22 kg with optional buoyancy).

SEE MORE

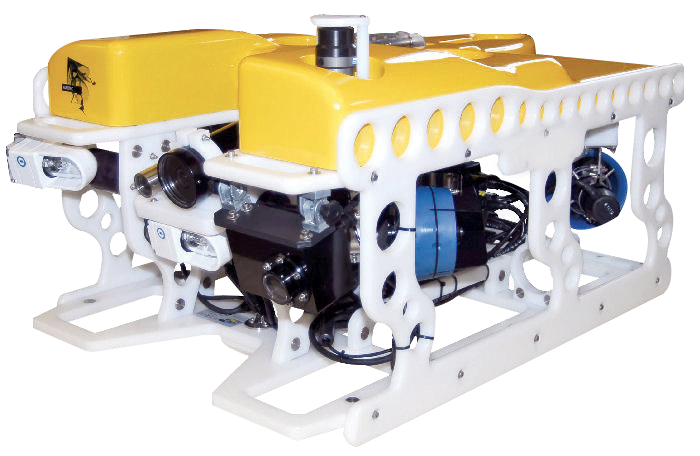

Rov Perseo

ROV PERSEO GTV FOR VISUAL AND INSTRUMENTAL INSPECTIONS, Key features: Name: ROV Perseo, Depth rating: 600 m, Dimensions: 980x710x510 mm, Weight: 80 kg
Chassis: Polyethylene H.D. and Stainless steel load frame and lift points, High resolution B/W camera sensibility 0.05 LUX, High resolution colour camera
2 x 150 W lamps with joystick control intensity regulator, Power requirements: 230÷400 VAC single phase 50÷60Hz 6 kW, Payload: Adjustable between 8 kg and 15 kg.

SEE MORE

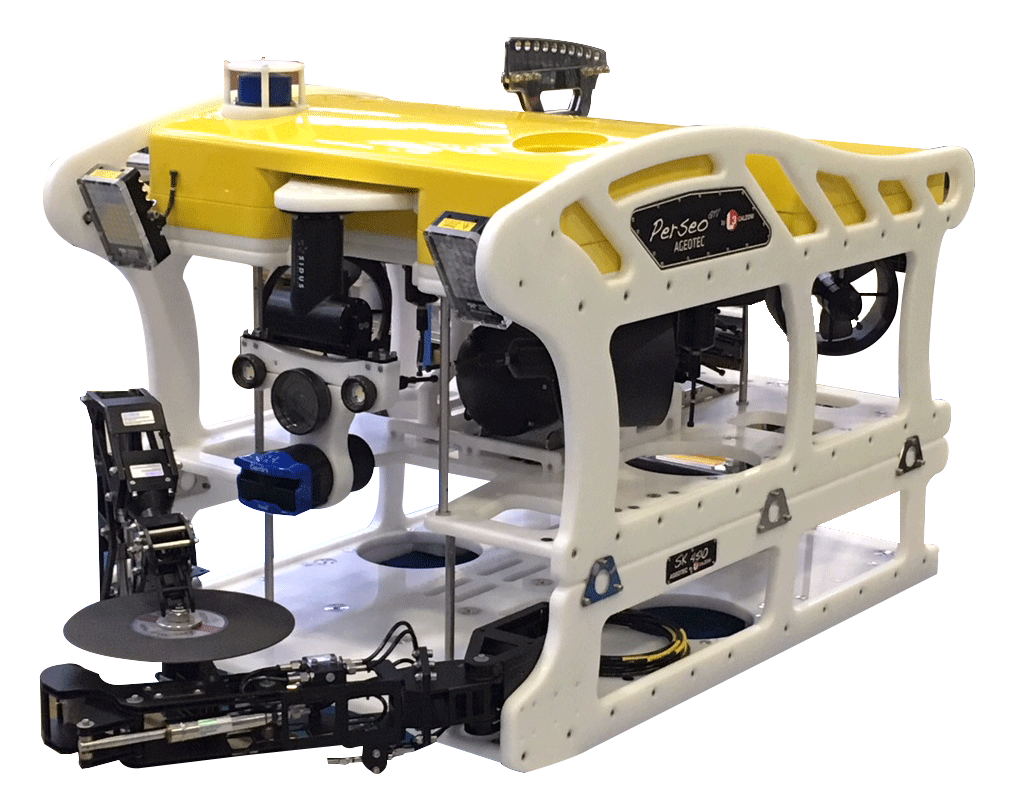

Rov Perseo GTV

ROV PERSEO GTV FOR VISUAL AND INSTRUMENTAL INSPECTIONS, Key features: Depth rating: standard 1500 m (deeper available), Dimensions: 1300x950x700 mm
Weight: 170 kg, Chassis: Polyethylene H.D. and Stainless steel load frame and lift points, High resolution monochrome camera sensibility 0.001 LUX,
High resolution colour camera sensibility 0.1 Lux, 2 x 150 W halogen lamps with remote control intensity regulator, Power requirements: 400 VAC 3-phase 50÷60Hz from 10 kW, Payload: Adjustable between 18 kg and 40 kg.

SEE MORE

Rov Pegaso

ROV for Light Work, Visual and Instrumental inspection, Observation, Search and Survey, Key features: Thrusters: 2 vertical and 4 vectored Tecnadyne 1060 DC brushless, Depht Rating: 600 m free-flight or 1500 m with TMS, Dimensions: 1500 mm (L) x 1000 mm (W) x 800 mm (H), Weight in air: 350 kg
Chassis: Polyethylene H.D. and Nautical Alloy load frame and lift points, 3 Video channels: Zoom, focus and still camera controls provided as standard
ROS high resolution Colour & B/W cameras standard mounted on Pan&Tilt, Two light lines for 2 x 150 W lamps ROS with remote control intensity regulator
Power requirements: 400÷440VAC tri-phase 50÷60Hz 9 kW for 600 m umbilical, Payload: Adjustable between 40 kg and 60 kg, Manipulators: 2/4 or 5/6 functions mounted on skid

SEE MORE

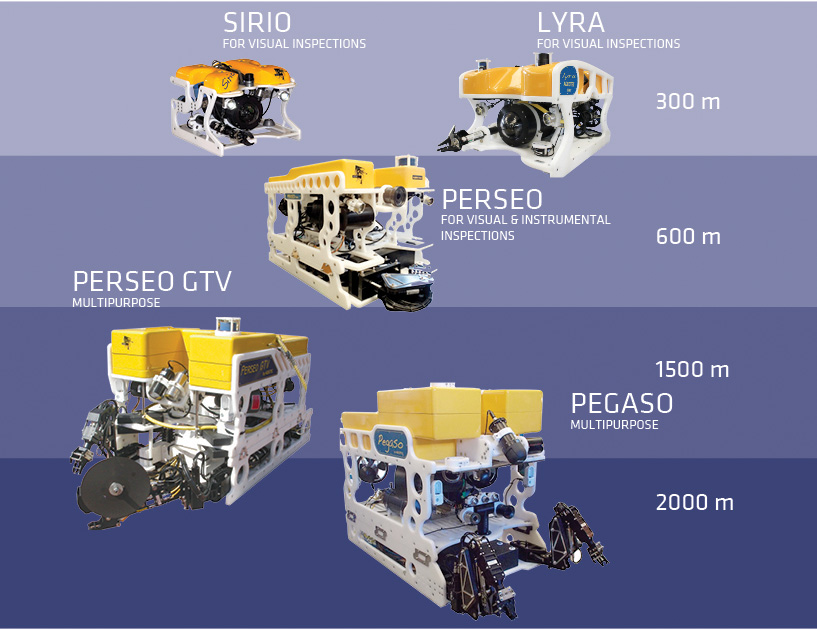

Comparison Table

SIRIO, LYRA, PERSEO, PERSEO GTV,PEGASO, Class, Length Width Height,Weight in air,Payload in air, Depth rating, Thrust: Forward Downward Lateral, Thruster configuration, Power requirements, Auto functions, Optical fiber, Real Time Video channels, Camera units, Lighting (dimmable), Winch (option free flight),Equipment & accessories, Manipulator, Scanning sonar, Acoustic positioning, CTD option Water sampling Seabed sampling, Metal thickness gauge, CP probe, Doppler, Bathysystem, FMD,Pipe & cable tracker, Detection camera system, Laser scanning camera, Dual head profiler, Multibeam Echosounder.

SEE MORE

Accessories

CAMERAS, LIGHTS, MANIPULATORS, WINCHES, SHEAVES

SEE MORE
